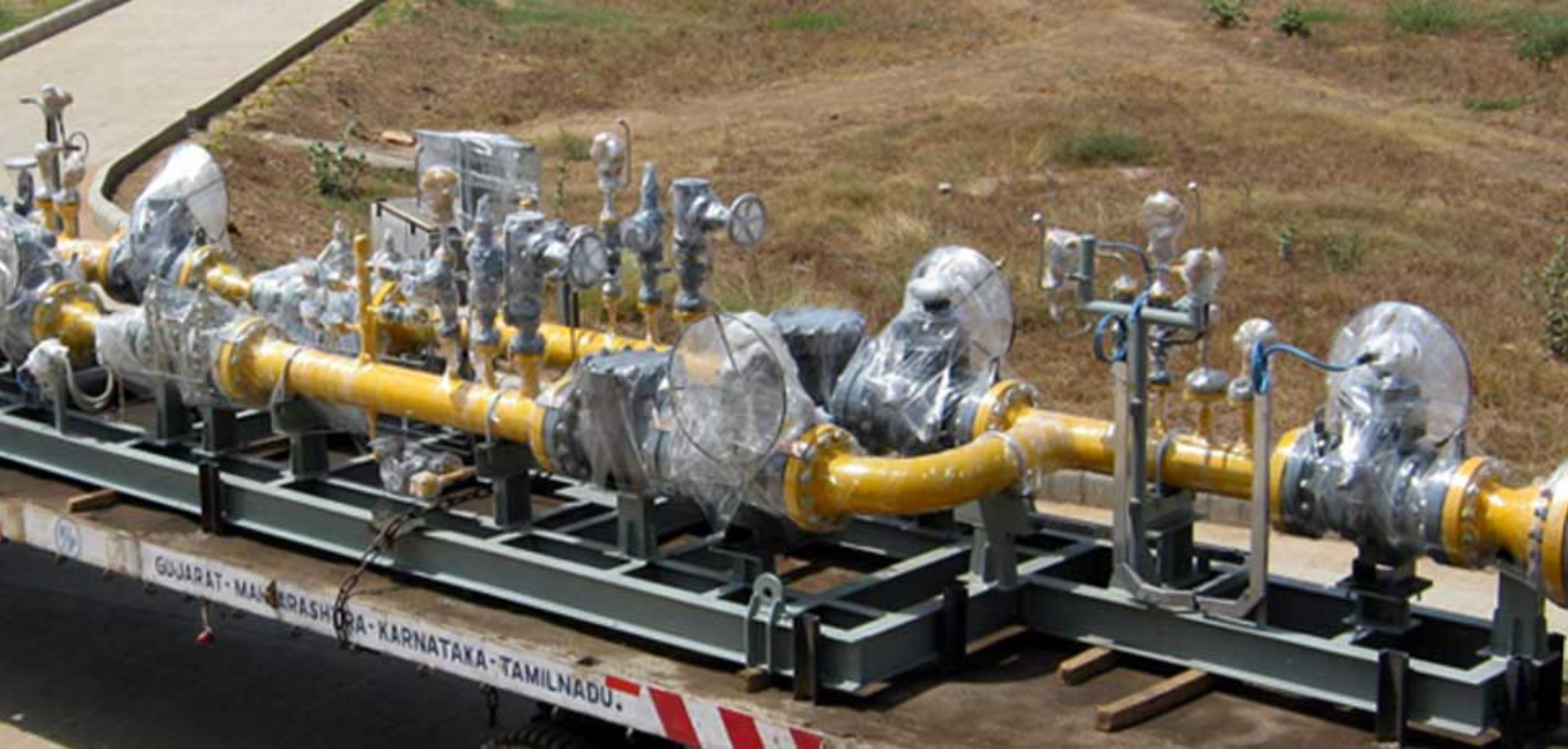

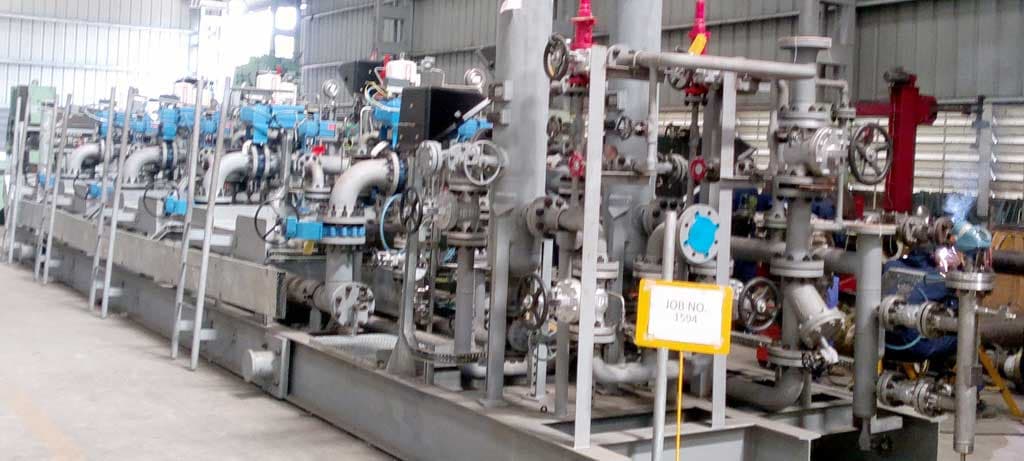

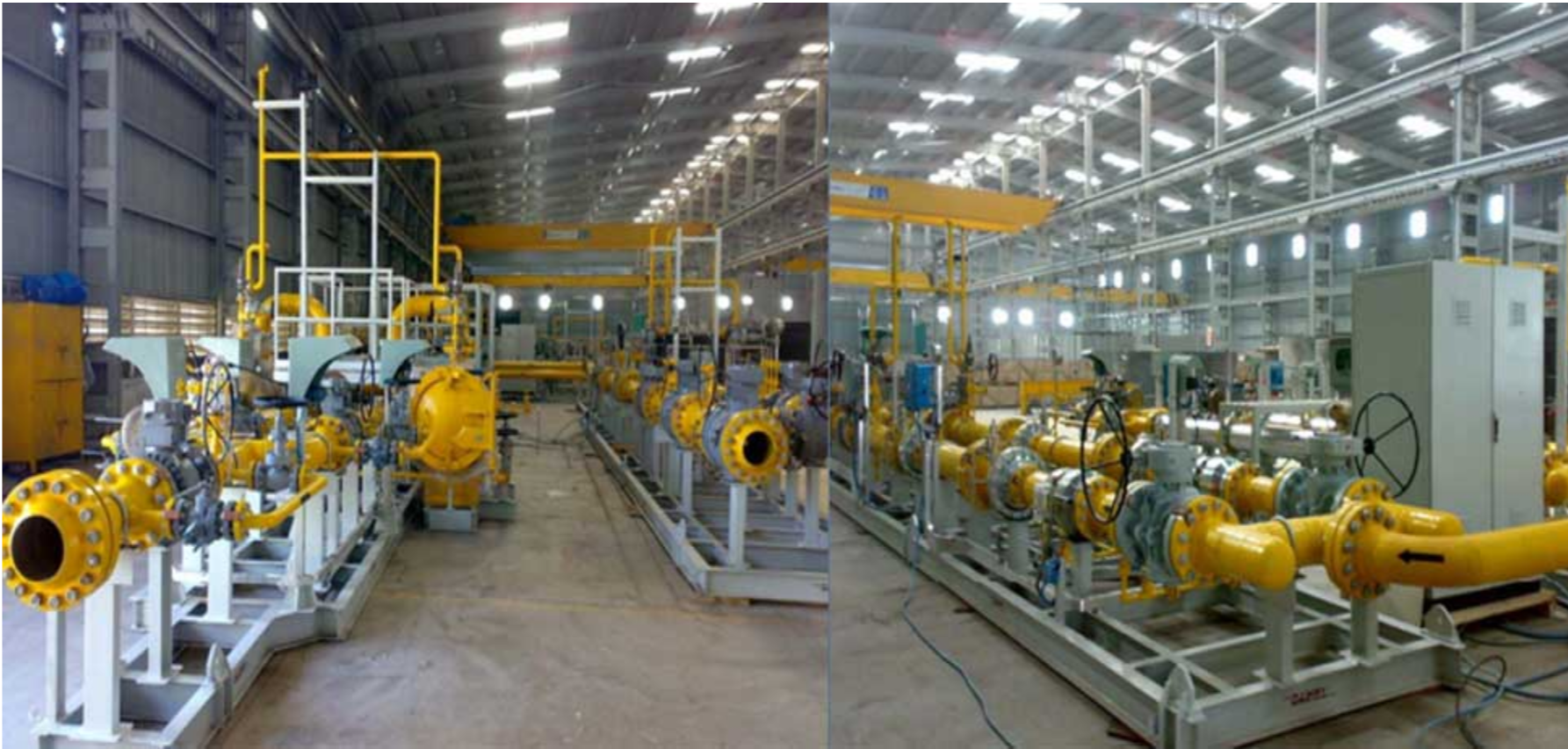

Skid Mounted Assemblies

Design and detailed engineering of static equipment (e.g., filters, knock out drum, surge vessel etc.) could also be done. Prime cost items such as motors, pumps, compressors, blowers, agitators, control system elements, measuring instruments, valves and appurtenances etc. can be purchased and installed based on process system designer's specifications and data sheets. BEV has the capability to integrate various components such as skid structure, pipe work, static and rotary equipment, electrical system, controls and instrumentation system etc.

BEV has a team of competent design engineers, design associates and draftsmen experienced in the field. Generally Autocad 2D is used for drafting and 3D for modeling and interference checks. Piping stress analysis can be carried out at our design associates if required.

Materials of construction range from carbon steel, various grades of low alloy steels through stainless steels like SMO (6% Mo) and Duplex/Super Duplex Stainless Steel including exotic metals like titanium, cupro nickel, incolloy etc. We have an extensive range of WPQRs covering a wide range of materials, thicknesses and welding processes such as SAW, SMAW, GTAW and FCAW. We have an extensive range of WPQRs to ASME Sec IX and EN ISO 15614 covering a wide range of materials, thicknesses, processes and other variables.

In addition, WPQRs to suit any custom requirements including Client specifications can be developed and qualified within a short turnaround time.

We carry out post weld heat treatment / stress relieving of individual welds using localized resistance heating. In case of larger volumes, temporary purpose-built temporary furnace could be arranged within our facility. Arrangements for non destructive testing such as radiography, dye penetrant, magnetic particle, ultrasound, PMI, spot hardness testing etc. are available. Metallurgical, mechanical and chemical testing is done at NABL accredited independent testing facility. Hydro testing up to 600 bar can be done with or without chart recorders. Pneumatic testing and / or helium leak testing could also be done. We have a fully enclosed steel grit blasting facility and air less spray painting facility. BEV is capable of installing insulation (hot / cold / acoustic), refractory, on skid piping and equipment and has a highly experienced team with extensive Middle East experience.

BEV is also capable of installing all E&I components including actuated valves, power driven equipment (e.g., pumps, blowers etc.), field instruments, JBs etc. with instrument tubing, power / small power and instrument cabling including loop checks, function tests and dry simulation. Arrangements could be made for rotating equipment trial run also. Management team has extensive experience in the heavy engineering industry within and outside India, especially with multi national companies, EPC global contractors, service providers etc. We have competent QC Inspectors, AWS/CSWIP 3.1/3.2 Certified Welding Inspectors, API 510 Pressure Vessel Inspectors and BGAS Grade II Painting Inspectors. In short, you are assured of a truly world class service within India. For a list of skid assemblies recently executed / in progress For a detailed split of scope for Skid Mounted Assemblies and a typical Process Flow Chart, click here to view our presentation.
