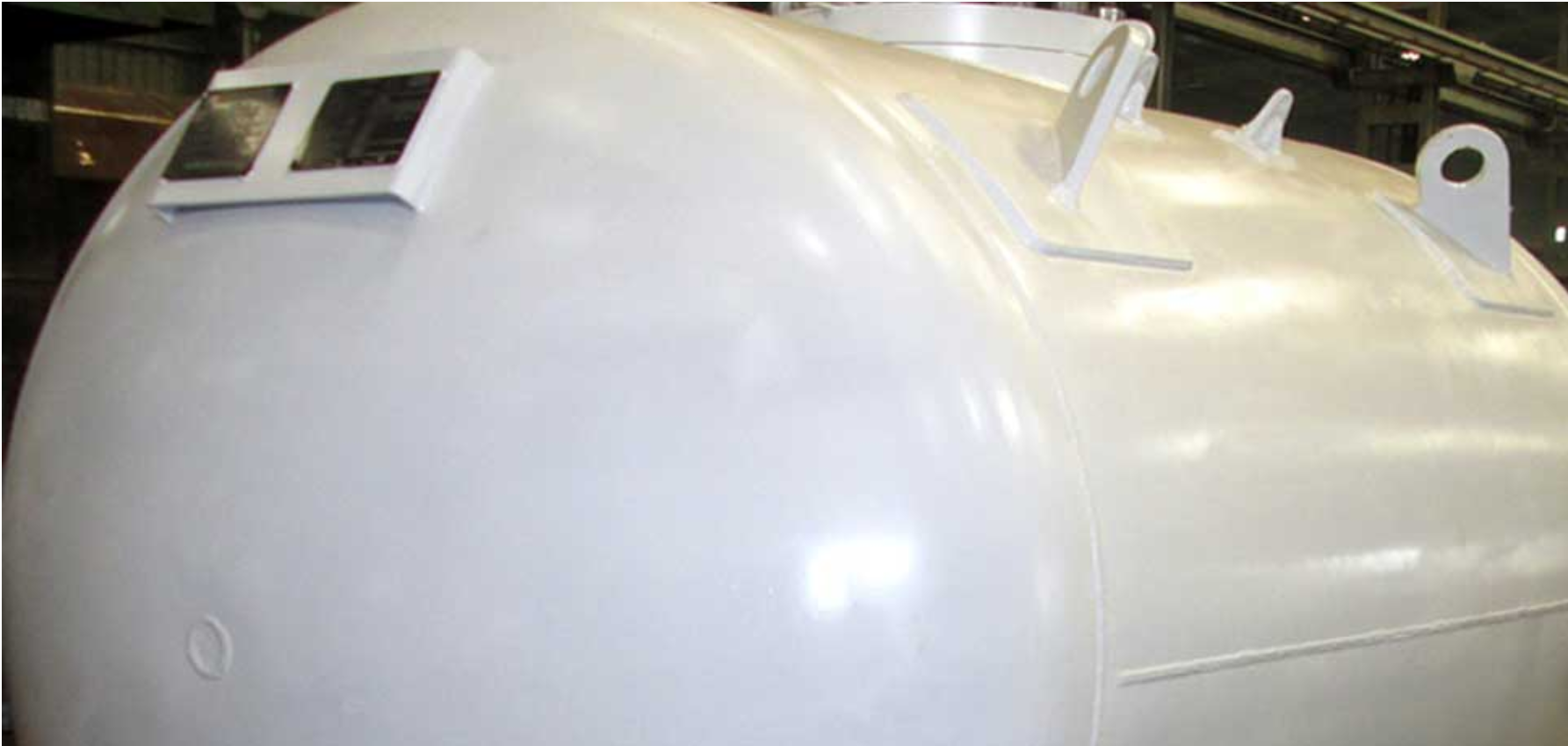

BEV undertakes design, manufacture, testing, painting and certification of Portable Pressurised Tanks for hazardous cargo. These are used transporting hazardous chemicals under International Maritime Dangerous Goods Code (IMDG) through various modes of transport such as ship, rail, road etc. anywhere in the world. The range of certifications cover typically ASME U Stamp, IMDG, ADR, RID, US DoT, UK DfT, CSC etc. The portable tank may be mounted on ISO 14196 frame or free standing on forklift pockets. These are certified by Hartford Steam Boilers, UK.
BEV also has the capability to design and manufacture BK2 certified containers / skips for bulk solids.

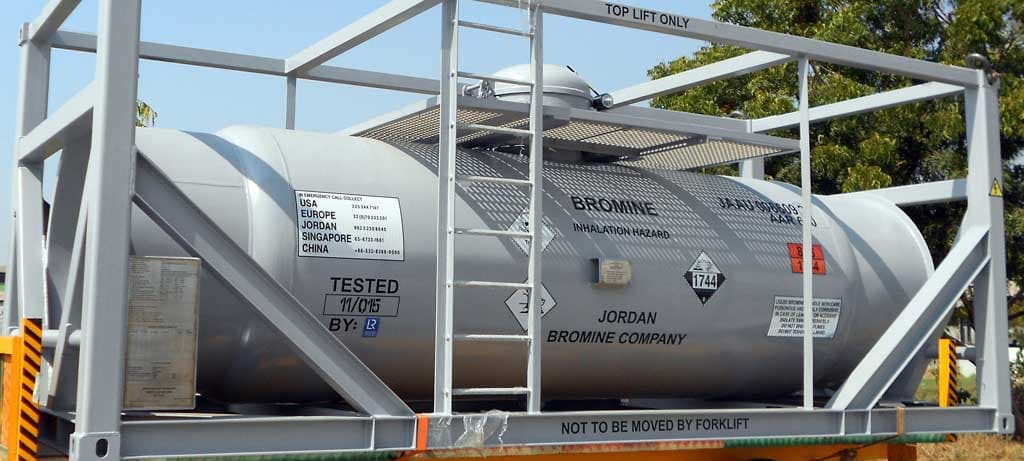

BEV has a proven track record of Liquid Bromine Isotainers with lead lining with all global certifications appropriate for multi modal transport by sea, road or rail anywhere in the world. BEV's Liquid Bromine Isotainers have been in use globally since 2016. BEV is the only manufacturer in the eastern hemisphere (outside of Europe & USA) with a proven track record of certified Liquid Bromine Isotainers. BEV's proprietary design is an 'all-welded' construction that has stood the test of time. To date BEV has supplied 196 Liquid Bromine Isotainers to all global bromine majors including Israeli Chemicals Ltd (Dead Sea Bromine Group), Jordan Bromine Co (Joint Venture of Albemarle Inc), Lanxess Speciality Chemicals and all major producers of bromine in India.
BEV has a team of competent design engineers, design checkers and draftsmen experienced in design, analysis, detailed engineering and drafting. Pressure vessel design is done using PVElite and customs developed spread sheets. Ansys is used for design modelling and analysis. Autocad Inventor is used for detailed engineering and drafting including building 3D model. All materials of construction are chosen to meet the code requirements, especially impact property and traceability. Design appraisal is carried out by Hartford Steam Boilers, UK and a Design Appraisal Certificate is obtained. Prototype manufacture, testing and approval follows. In the case of frame mounted tanks, both static load tests and dynamic rail road impact tests could be performed in IMDG / US DoT approved test houses. For self standing tanks, BEV is also fully equipped to carry out proto type testing in-house.
We have CNC profile cutters and welding machines, both manual and semi automatic. Barring full penetration welds, all other welding is done using FCAW. We have an extensive range of WPQRs to ASME Sec IX, AWS D1.1 and EN 288 covering a wide range of materials, thicknesses and processes. We deploy welders and welding operators certified to the appropriate standard. We have a team of QC Inspectors and AWS/CSWIP 3.1/3.2 Certified Welding Inspectors. We have a fully enclosed steel grit blasting facility and air less spray painting facility. Non destructive testing such as radiography, ultrasound etc. and material testing at NABL accredited testing facility is available within reach.
Management team has extensive experience in the design and development, manufacture, testing, certification and product standardization of portable tanks for hazardous cargo. In short, you are assured of a fully code compliant product and a truly world class service from India.
| Parameter | Specification |
|---|---|
| Design Codes | ASME Sec VIII Div 1, IMDG, ADR, RID, US DoT, UK DfT |
| Frame Standards | ISO 14196 frames, freestanding with forklift pockets |
| Certifications | ASME U Stamp, IMDG, ADR, RID, US DoT, UK DfT, CSC, BK2 |
| Certification Body | Hartford Steam Boilers, UK |
| Design Software | PVElite, Ansys, StaadPro, AutoCAD Inventor 3D |
| Tank Types | ISO tank containers, BK2 Bulk solid containers, small portable tanks |
| Special Products | Liquid Bromine Isotainers T22 with lead lining |
| Welding Processes | SAW, SMAW, GTAW, FCAW, GMAW |
| NDT & Testing | RT, UT, PT, MT, PMI, Material testing in NABL-accredited labs |
| Painting | ISO 12944 C3, C4, C5M |
| Testing | Static load tests to ISO 14196, Dynamic Rail Road Car Tests per US DoT |
| Client / EPC Contractor | End User | Equipment | Qty | Year |
|---|---|---|---|---|
| Dead Sea Bromine Company Ltd. | Dead Sea Bromine Company Ltd | Design, procurement, lead lining, certification, manufacturing and supply of 5 no. 8,000 Liters UN T22 Bromine tank mounted on an ISO 1496 Class III Frame in accordance with ASME Sec VIII Div. 1, ISO 1496, DOT 49 CFR, RID, ADR, IMO, IMDG, AAR.600, CSC and ASME U Stamp | 1 | 2024 |
| Gulbrandsen Chemicals Pvt. Ltd., India | Gulbrandsen | Design, detailed engineering, procurement, fabrication, testing, ‘U’ Stamping, Certification and painting of C1980 Portable Tanks in accordance with ASME Sec VIII Div 1, IMDG/ADR/US DOT/RID/UNT 21/UN3394/TC/TIR | 1 | 2023 |
| Jagannath Halogen Pvt Ltd | Jagannath Halogen Pvt Ltd | Design, detail engineering, procurement, fabrication, testing, lead lining, painting and certification of 1 No. 8,000 Liters UN T22 Bromine tank mounted on an ISO 1496 Class III Frame in accordance with ASME Sec VIII Div. 1, ISO 1496, DOT 49 CFR, RID, ADR, IMO, IMDG, AAR.600, CSC and ASME U Stamp | 1 | 2023 |
| Raj Orgochem Pvt Ltd | Raj Orgochem Pvt Ltd | Design, detail engineering, procurement, fabrication, testing, lead lining, painting and certification of 15 off 8,000 Liters UN T22 Bromine tank mounted on an ISO 1496 Class III Frame in accordance with ASME Sec VIII Div. 1, ISO 1496, DOT 49 CFR, RID, ADR, IMO, IMDG, AAR.600, CSC and ASME U Stamp | 1 | 2022 |
| Archean Chemical Industries Pvt Ltd, India | Archean Chemical Industries | Design, detail engineering, procurement, fabrication, testing, lead lining, painting and certification of 30 no. of 8,000 Liters UN T22 Bromine tank mounted on an ISO 1496 Class III Frame in accordance with ASME Sec VIII Div. 1, ISO 1496, DOT 49 CFR, RID, ADR, IMO, IMDG, AAR.600, CSC and ASME U Stamp | 1 | 2022 |
| Intech Organic Ltd | — | Design, detail engineering, procurement, fabrication, testing, lead lining, painting and certification of 8 No. of 8,000 Liters UN T22 Bromine tank mounted on an ISO 1496 Class III Frame in accordance with ASME Sec VIII Div. 1, ISO 1496, DOT 49 CFR, RID, ADR, IMO, IMDG, AAR.600, CSC and ASME U Stamp | 1 | 2022 |
| Lanxess Solutions Uk Ltd. | Lanxess | Design, detail engineering, procurement, fabrication, testing, lead lining, painting and certification of 12 No. of 8,000 Liters UN T22 Bromine tank mounted on an ISO 1496 Class III Frame in accordance with ASME Sec VIII Div. 1, ISO 1496, DOT 49 CFR, RID, ADR, IMO, IMDG, AAR.600, CSC | 1 | 2021 |
| Satyesh Brinechem Pvt Ltd | Satyesh Brinechem Pvt Ltd | Design, detail engineering, procurement, fabrication, testing, lead lining, painting and certification of 30 No. of 8,000 Liters UN T22 Bromine tank mounted on an ISO 1496 Class III Frame in accordance with ASME Sec VIII Div. 1, ISO 1496, RID, ADR, IMO, IMDG, AAR.600, CSC | 1 | 2021 |
| Archean Chemical Industries Pvt Ltd, India | Archean Chemical Industries | Design, detailed engineering, procurement, fabrication, testing, lead lining, painting and certification of 50 no. of 8,000 Liters UN T22 Bromine tank mounted on ISO 1496 Class III Frame in accordance with ASME Sec VIII Div. 1, IMDG, ADR, RID, US DoT, UK DfT, CSC, CFR etc. | 1 | 2019 |
| Jordan Bromine Company Limited | Jordan Bromine Company | Design, detailed engineering, procurement, fabrication, testing, lead lining, painting and certification of 8,000 Liters UN T22 Bromine tank mounted on ISO 1496 Class III Frame in accordance with ASME Sec VIII Div. 1, IMDG, ADR, RID, US DoT, UK DfT, CSC, CFR etc. | 1 | 2015 |
| Albemarle Corporation, Usa | Albemarle | Design, detailed engineering, procurement, fabrication, testing, certification and delivery of UN T21 Portable Tanks to ASME Sec VIII Div. 1, ADR, RID, IMDG, US DoT, UK DfT, CSC etc. | 1 | 2013 |
